Description

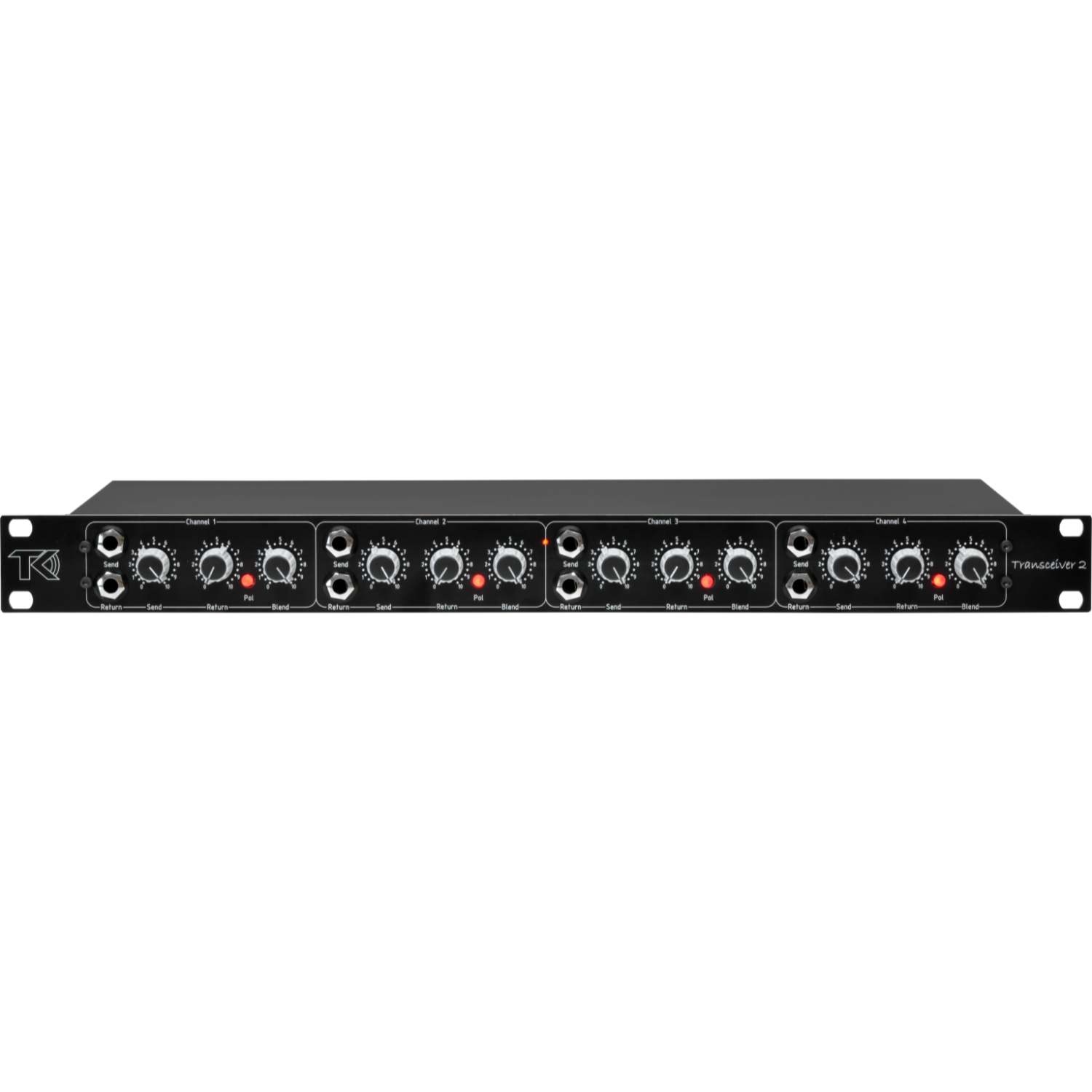

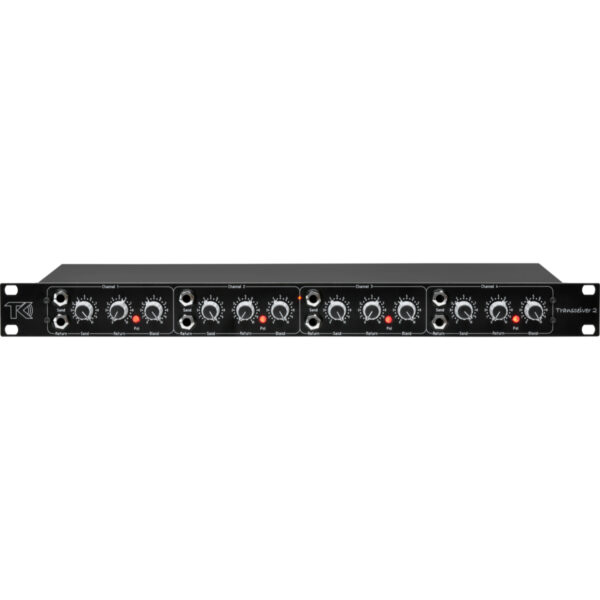

Le Transceiver est une station d’insertion Ă quatre canaux. Sa fonction principale est de convertir des signaux symĂ©triques +4dB en signaux asymĂ©triques et inversement. Chaque canal a un niveau d’envoi, le retour a un contrĂ´le de gain et un commutateur de polaritĂ©.
- Max balanced input: +27dBu
- Max unbalanced send level: +22dBu
- Max return input level: +22dB
- Return gain: 0 to 20dB
- Return input impedance: 1Mohm
- Max balanced output: +27dBu
- Send frequency response: 10-100kHz +/-0,1dB
- Send THD+N @ 1kHz: less than 0,001%
- Return frequency response: 10-100kHz -0,2dB (at 10Hz)
- Return THD+N @ 1kHz: less than 0,003%
Features:
- Send: TRS jack
- Send level: 0 to full
- Return: TRS jack
- Return gain: 0 to 20dB
- Polarity: flips the polarity of the return signal
- Regulated, internal power supply with a toroidal transformer
- Selectable between 115 and 230V
Specifications and components may be changed or updated without further notice.
