AudioPressBox APB-208 R

Description

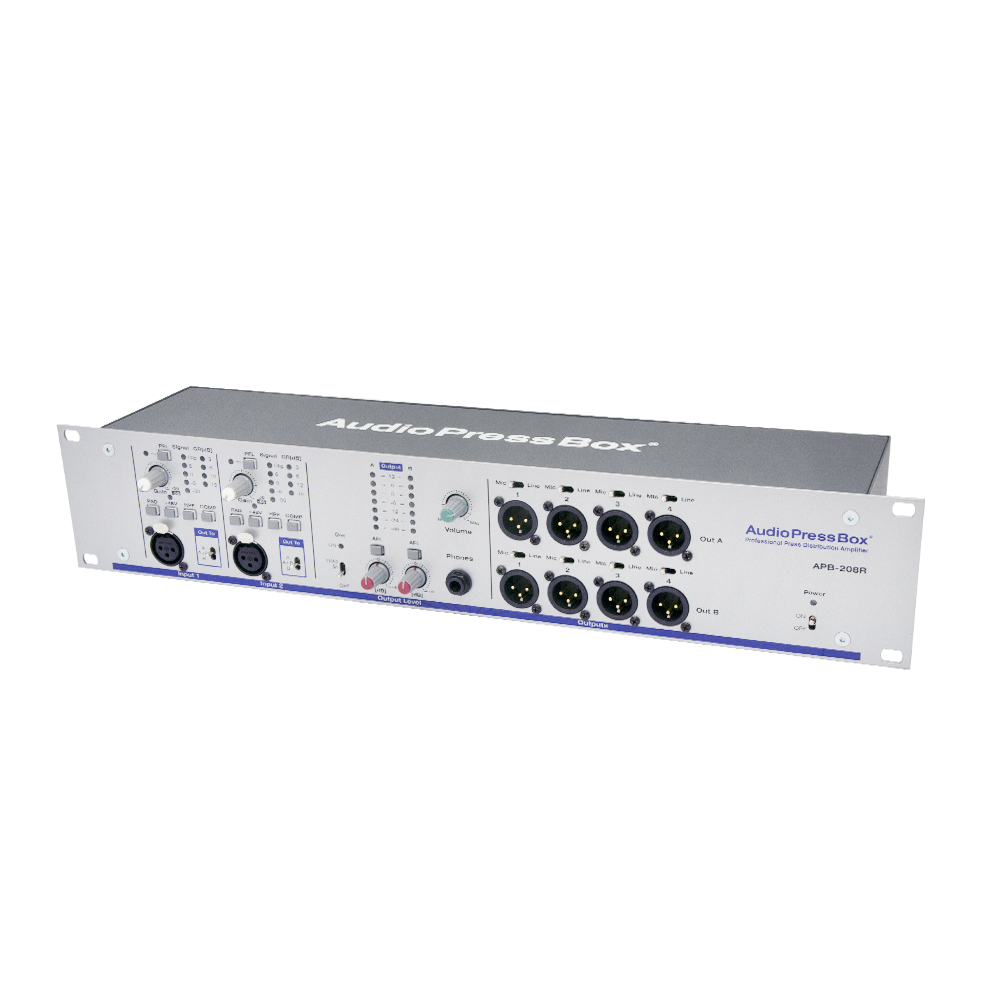

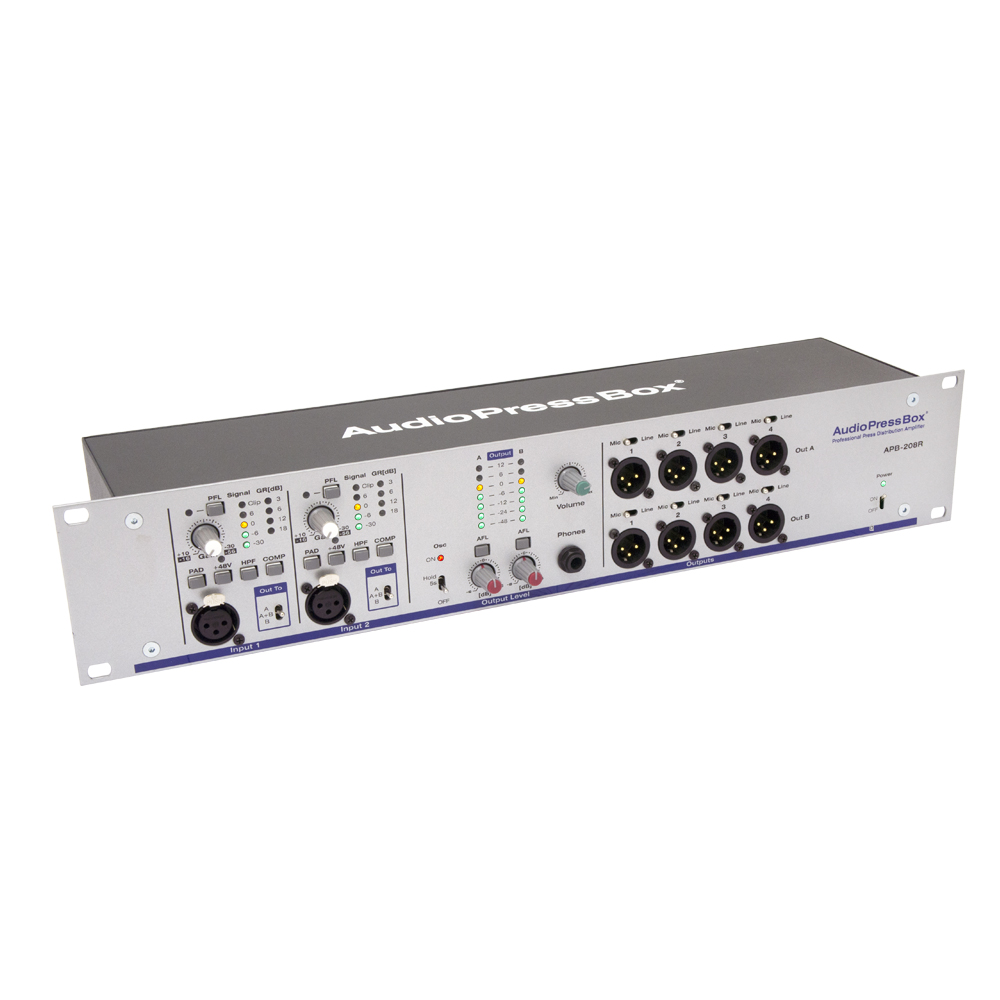

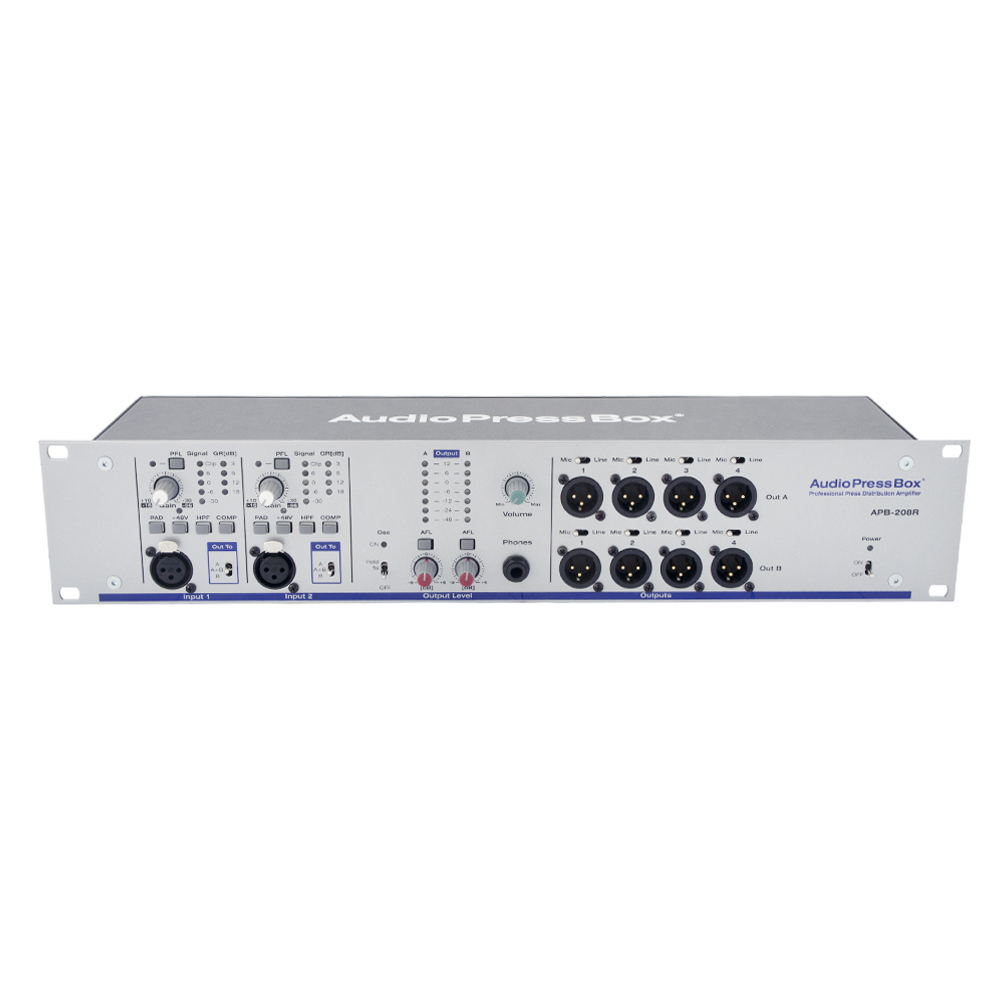

Professional active AudioPressBox Drive unit for expanders, 19” rack for portable or fixed instalation

• 2 MIC (phantom)/LINE Input – balanced with gain control and 26dB PAD

• Each Input is routable to A/(A+B)/B Output Group

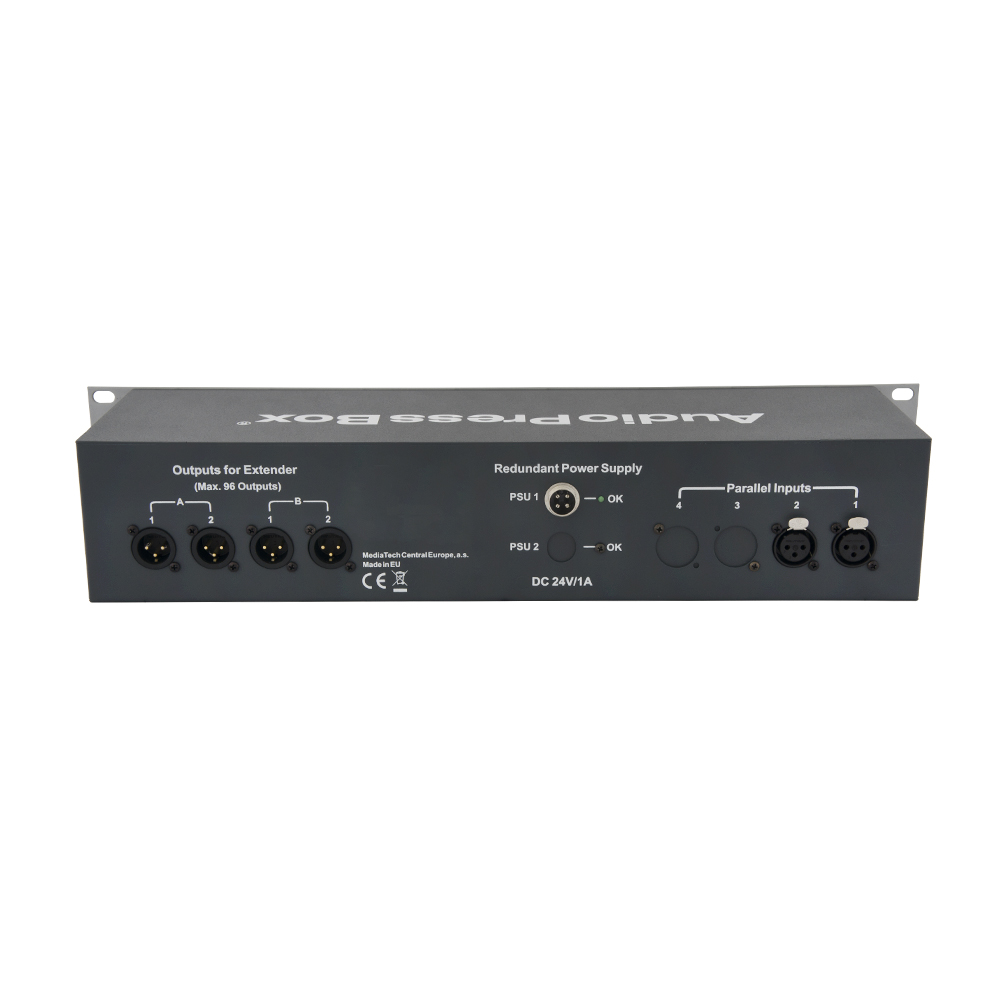

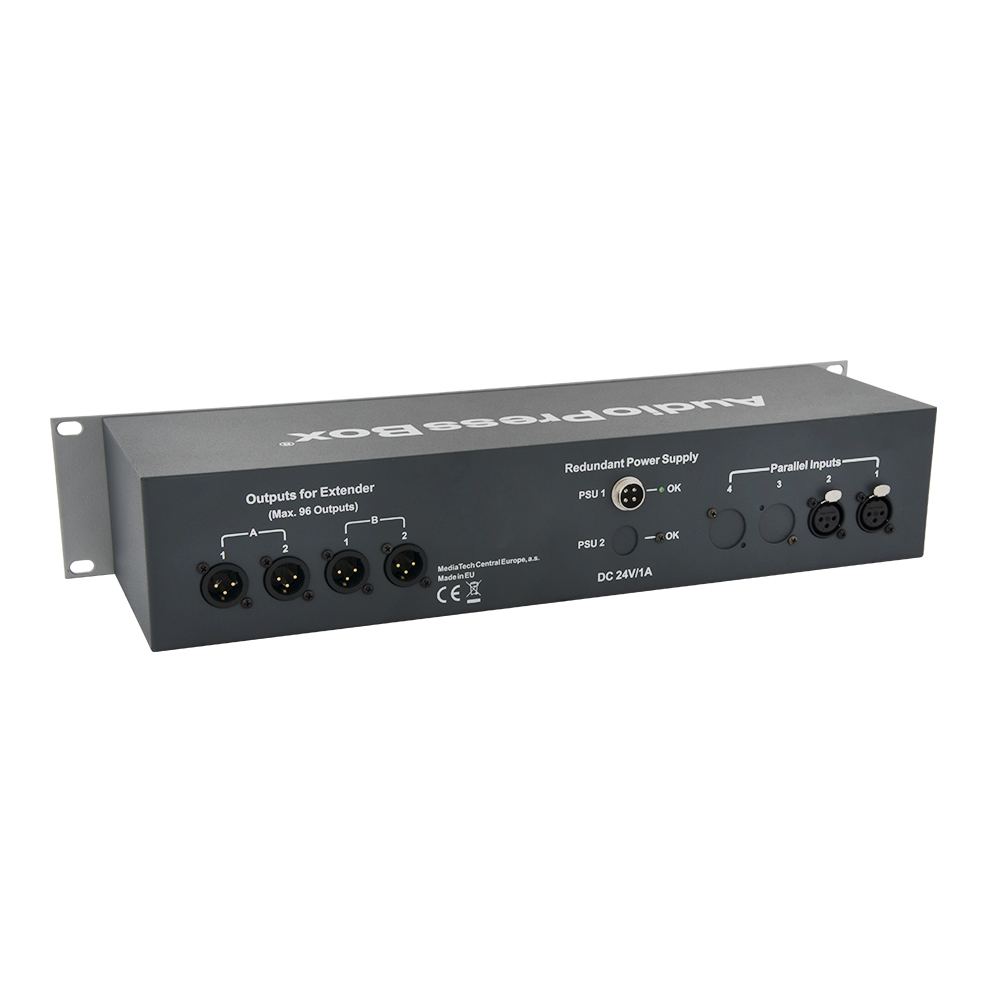

• Paralel Inputs on the rear panel

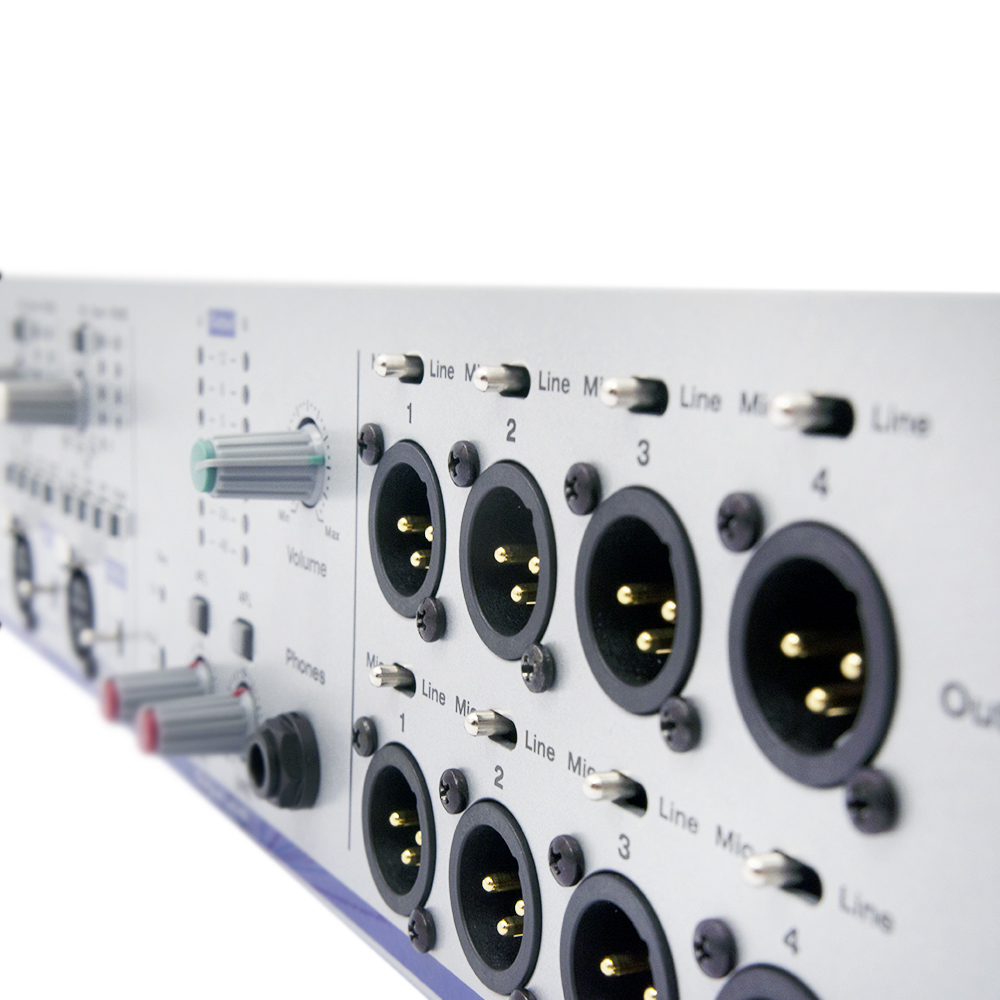

• 8 High quality balanced Outputs, independent transformer isolated and switchable LINE or MIC Output level. Two internal Output Group: 4x Out A and 4x Out B

• 2 separate buffered A and B Outputs for driving up to 12 AudioPressBox expanders (each expander has 8 outputs)

• Switchable High-Pass filter, Compressor and Limiter for each Input channel

• Constant level Test signal oscillator with no mistake switch operation

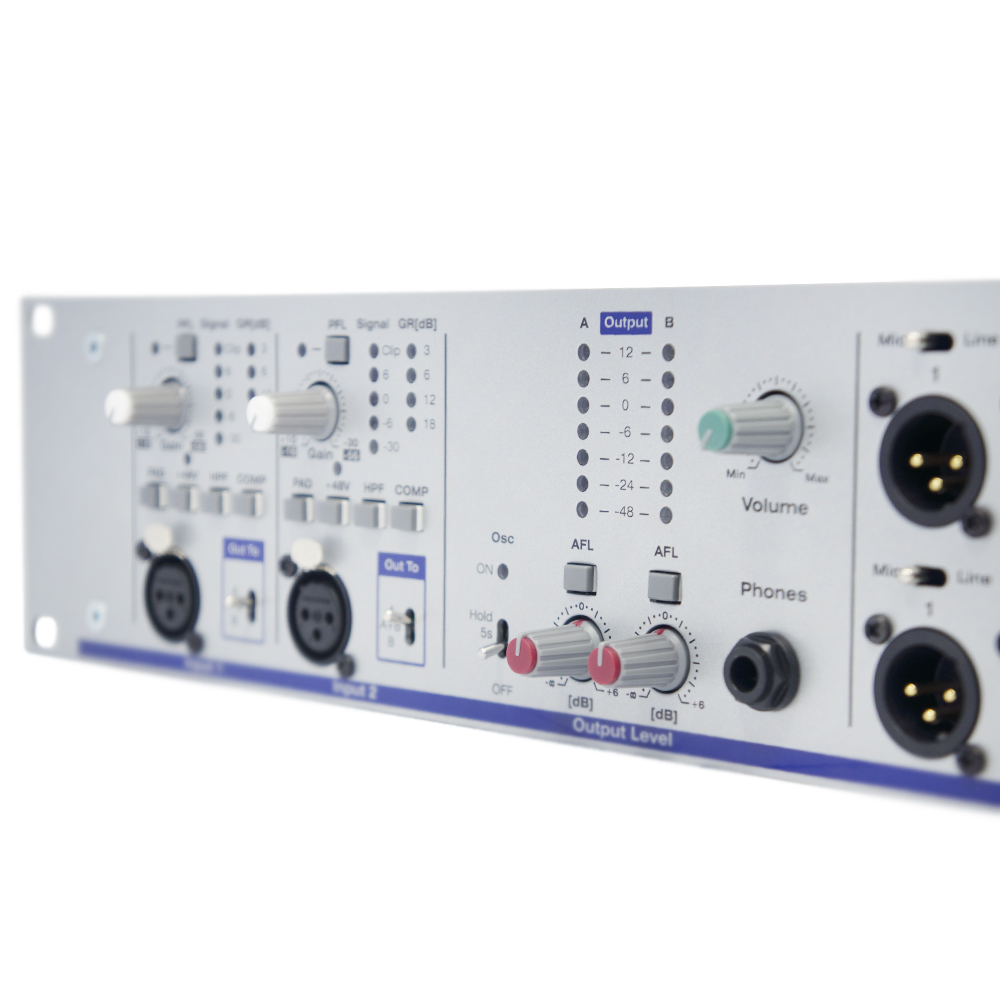

• Headphone control Output for PFL/AFL for each Input/Output channel

Note: Source of: APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX
